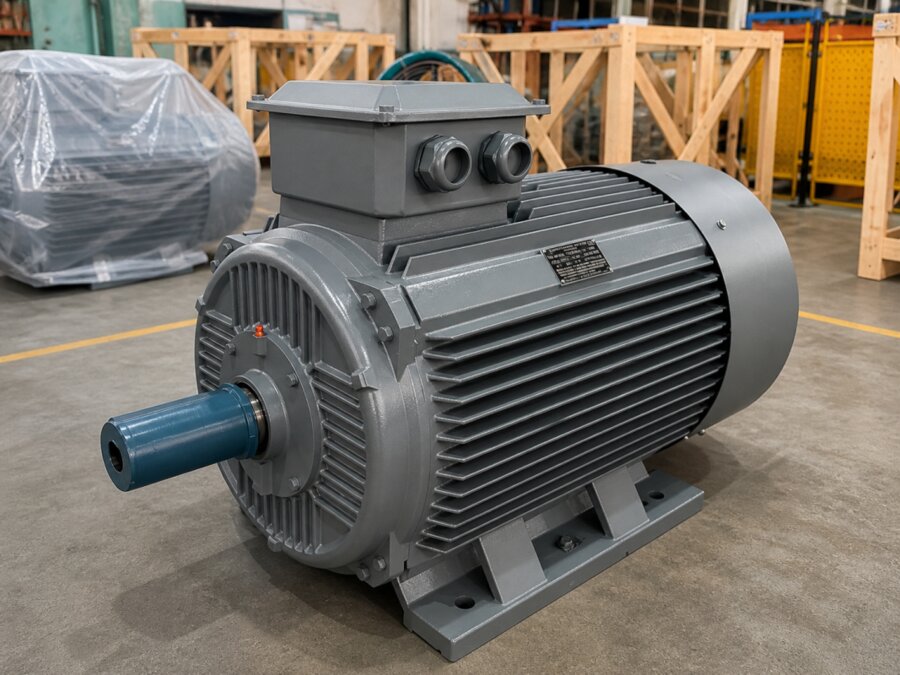

DRG IE3 Series Electric Motors
The DRG IE3 series are three-phase asynchronous electric motors built to the IEC 60034-30-1 Premium Efficiency (IE3) class, covering a power range from 0.55 to 355 kW. With a cast iron frame and a wide choice of speeds and mounting types, they are shipped from stock for pumps, fans, compressors, conveyors and heavy industry.
General Technical Specifications
| Feature | Value / Description |
|---|---|
| Power range | 0.55 – 355 kW |
| Efficiency class | IE3 – Premium Efficiency (IEC 60034-30-1) |
| Poles / Speed | 2 / 4 / 6 / 8 poles – 3000 / 1500 / 1000 / 750 rpm |
| Frequency | 50 Hz / 60 Hz |
| Voltage | 230/400 V – 400/690 V |
| Frame material | Cast iron |
| Mounting types | B3, B5, B14, B35 |
| Protection | IP55 |
| Insulation | Class F (155 °C) |
| Duty type | S1 (continuous) |
| Colour | RAL 7032 / 5012 / 6028 |
| Certificates | CE – ISO – LVD – EMC – EAC |
| Noise | 58 – 75 dB(A) |
| Vibration | ≤ 1.8 mm/s (ISO 10816) |
Material Quality and Construction
Production quality: All windings are wound on fully automatic coil machines and reinforced with a vacuum-impregnation process.
Materials:
- 100% pure electrolytic copper: high conductivity, low losses, long winding life
- Silicon steel (rotor & stator lamination): low core loss, high magnetic flux density
- Cast iron body: high mechanical strength, shock absorption, quiet operation
- Bearings (SKF / C&U / NSK): high-speed endurance, low friction, long life
- Fan and cover design: optimised airflow, high cooling efficiency, low noise
Insulation system:
- Insulation class: Class F (155 °C)
- Operating temperature: max. 110 °C
- Impregnation: double-coat varnish under vacuum
- Protection: IP55
Noise and Vibration Values
The DRG IE3 series exceeds industry standards in acoustic and mechanical balance.
Noise levels (sound pressure – dB(A)):
| Power range | Speed | Noise level | Test standard |
|---|---|---|---|
| 0.75 – 7.5 kW | 1500 rpm | 58 – 62 dB(A) | EN 60034-9 |
| 11 – 55 kW | 1500 rpm | 63 – 67 dB(A) | EN 60034-9 |
| 75 – 200 kW | 1500 rpm | 68 – 72 dB(A) | EN 60034-9 |
| 250 – 355 kW | 1500 rpm | 72 – 75 dB(A) | EN 60034-9 |
The optimised fan profile and aerodynamic cover reduce air turbulence and lower the noise level.
Vibration levels (RMS velocity – mm/s):
| Test standard | Value | Description |
|---|---|---|
| ISO 10816 – Class N | ≤ 1.8 mm/s | Standard operation |
| ISO 10816 – Class R | ≤ 1.2 mm/s | Low-vibration application |
Every motor undergoes a rotor balance test to the G 2.5 balance standard, extending bearing life, preventing frame resonance and ensuring quiet operation.
Thermal Design and Durability
The air channels in the body optimise heat dissipation:
- Distribute rotor and stator heat evenly
- Keep bearing temperature below 80 °C
- Deliver high performance in continuous (S1) duty
Mechanical durability:
- Body: cast iron (GG20)
- Shaft: C45 carbon steel
- End covers: cast iron
- Paint: industrial electrostatic powder coat (RAL 7032 / 5012 / 6028)
Thermal protection and insulation:
- Insulation: Class F (155 °C)
- Temperature rise limit: < 80 K
Thermal balance is maintained even under continuous high load; the motors are suitable for 24/7 operation.
Quality Tests (Post-Production)
- Winding resistance measurement
- Insulation resistance test (500 V Megger)
- Rotor balance test – G2.5 standard
- Noise test – EN 60034-9
- Vibration analysis – ISO 10816
- Thermal camera inspection
- Load tests (rated torque / rated current)
- 2-hour continuous run test before shipment
Every DRG motor is tested on a full test bench before leaving the factory, and results are archived in a quality form.
Why DRG IE3?
Energy and cost advantage: up to 10% annual energy savings versus IE2, paying back the investment within 1–2 years.
Quiet, balanced build: guaranteed ≤ 70 dB noise and ≤ 1.8 mm/s vibration; a real difference in pump, fan, conveyor and compressor systems.
Long service life:
- Bearing life: 30,000 – 40,000 hours
- Body life: > 20 years
- Thermal insulation life: 15+ years
Applications:
- Crushing & screening plants
- Compressor and fan systems
- Geared transmission systems
- Pump stations
- Conveyor lines
- Mixers and agitators
- Hydraulic presses
Delivery, Warranty and After-Sales
Standard ratings ship from stock, with short lead times for special windings and high power. All products carry a 2-year warranty, backed by nationwide service and spare-part support.
